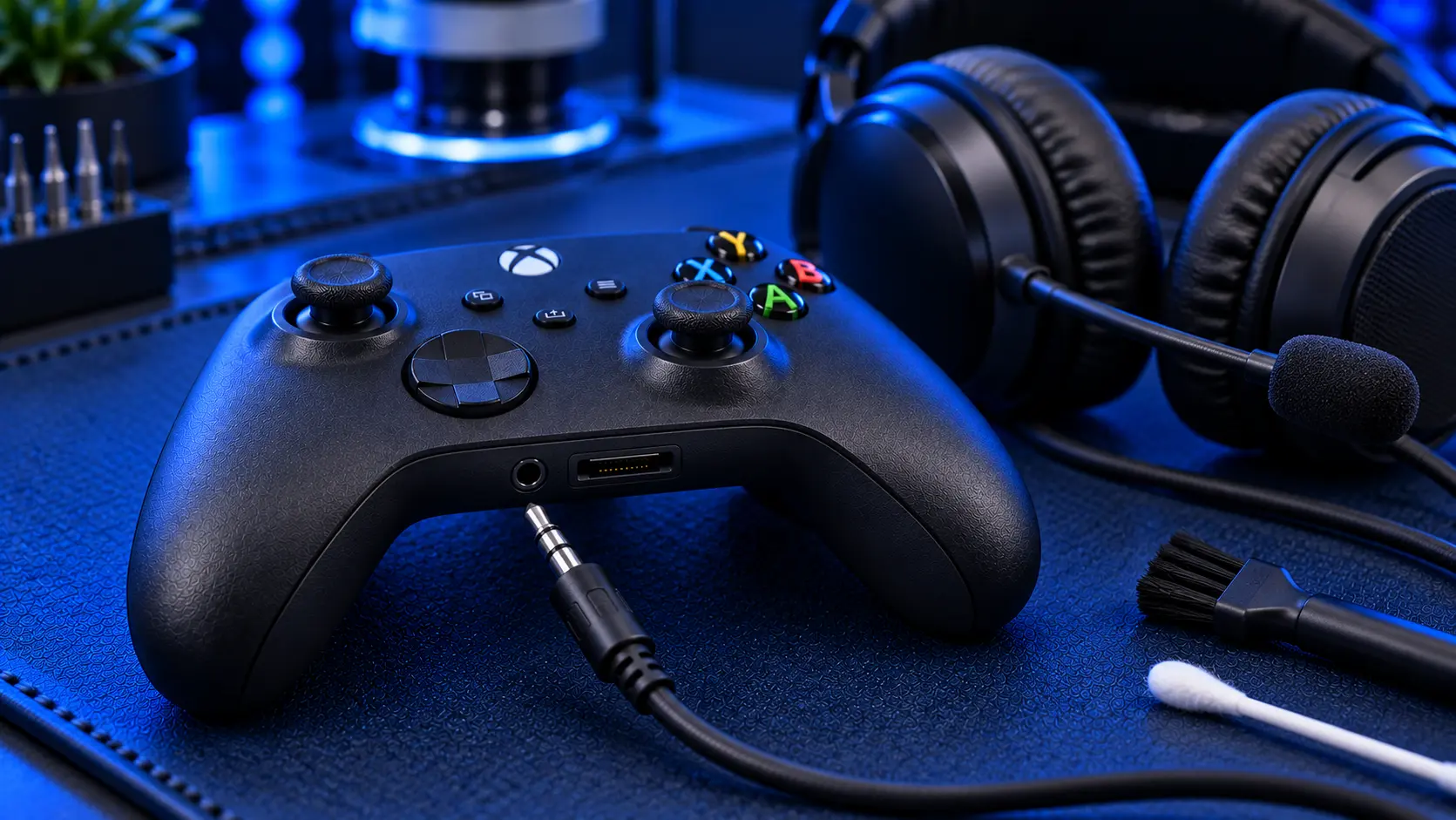

Plugging a wired headset into your Xbox controller should give you game audio and chat straight away. When it doesn't (silence, crackling, sound in one ear, or a microphone your friends can't hear), the controller's headphone jack is a common culprit. But it's far from the only one, so it's worth ruling out the free causes before paying for anything.
Check the Xbox audio settings
With your headset plugged into the controller, press the Xbox button to open the guide, then go to the audio settings. From there you can check the headset volume, and the balance between game audio and chat, often called the chat mixer. If the game audio is turned right down in favour of chat, you'll hear your friends but not the game, which easily passes for a hardware fault.
Also check that your headset isn't muted. Many wired headsets have a mute switch or volume wheel on the cable that's easy to knock.
Rule out the headset
Before blaming the controller, test both halves separately:
Plug your headset into something else, such as a phone or laptop. If it doesn't work there either, the headset is the problem.
Plug a different pair into the controller. If a second pair works fine, your headset or its cable is at fault.
Push the plug fully home. Some adapters and splitters stop a 3.5mm plug seating completely, which gives exactly the crackling or one-ear symptoms of a broken jack.
If your headset works elsewhere and a second pair fails in the controller too, the controller's jack is the likely fault.
Does your controller have a jack?
It's worth checking. Xbox Series X|S controllers, and most Xbox One controllers, have a 3.5mm headphone jack on the bottom edge. But the very first Xbox One controllers had no 3.5mm jack at all, and needed a separate headset adapter plugged into the bottom. If yours is one of those, there's no jack to repair. The adapter is the part to check or replace.
How a headphone jack fails
The jack is a small socket with springy contacts inside that grip the plug. Depending on the model, it's mounted either on the controller's main board or on its own small assembly. Cables get pulled when you stand up, leaned on during play and wound tightly around the controller when it's put away. Over time the contacts lose their grip or break, and the solder joints can crack.
The symptoms of a failed jack are fairly consistent:
No sound at all through any wired headset
Crackling or audio cutting in and out
Sound in one ear only
It works only with the plug held or wiggled a certain way
The headset microphone isn't picked up
A wired headset's microphone goes through the same jack, so a faulty jack often affects your chat as well as your game audio.
Sound works, but the microphone doesn't
If you can hear the game but your friends can't hear you, check the mute first. Most wired headsets have a mute switch on the cable or the earcup, and it's easy to knock.
Next, check the plug. A headset that works with a phone uses a single plug with four sections on it (four-pole). Many PC headsets have two separate plugs, one for audio and one for the microphone. Plugged into the controller with a single-plug adapter that isn't designed for them, you'll get sound but no microphone. That's the adapter, not the controller.
If the mute and the plug are fine, and the headset's microphone works on another device, the jack has usually lost one of its internal contacts. The sound and the microphone use separate contacts inside the socket, so one can fail while the other still works. The repair is the same either way.
What the repair involves
An Xbox controller headphone jack repair with me is £29 all-in, including parts and tracked return postage. I open the controller, replace the failed socket (or its small assembly, on the Xbox One models that have one), and test audio in both ears and the headset microphone before posting it back. It covers Xbox Series X|S controllers and Xbox One controllers that have a 3.5mm jack. Every repair is covered by a no-fix-no-fee promise and a 12-month warranty.
If anything else is playing up, such as sticky buttons, a bumper that won't click or a charging problem, mention it when you book so it can all be sorted in one visit.
Is there a workaround?
If you'd rather not repair the jack, a wireless headset or a headset that connects to the console directly bypasses the controller jack altogether. That's a good option if you were planning to upgrade your headset anyway. But if you're happy with your current headset, replacing the jack costs a lot less than a new headset or controller.
My recommendation
Check the chat mixer, the headset's own mute switch and a second pair of headphones before anything else. Between them, they account for plenty of "broken" jacks. If a known-good headset still crackles, cuts out or plays in one ear when plugged into the controller, the jack has failed, and replacing it is a quick, fixed-price bench job.
The Repair Works is an independent UK repair service, run by me, Paul — 25 years of hands-on repair experience, working by post for customers across the whole country. Not affiliated with or endorsed by Microsoft.
