Switch Lite Stick Drift Repair: Hall Effect Upgrade
No fix, no fee · 12-month warranty · Insured, tracked returns
Signs you need this repair
- Characters or the camera move with the stick untouched
- Menus scroll or selections jump on their own
- Calibration shows the stick off centre at rest
- Movement cuts out at certain angles
- The drift returns soon after recalibrating
The Switch Lite uses the same kind of stick as a Joy-Con: a potentiometer, where a small wiper slides over a carbon track that wears with use. Dust gets in as well. The difference is that the Lite's sticks are built into the console, so there's nothing to detach and post separately. Drift on a Lite means the whole console comes to me.
Nintendo UK repairs Switch Lite stick drift free of charge, even out of warranty, until further notice. If you just want it working with standard sticks, that's the obvious first step, and this guide to Switch Lite drift explains your options. Nintendo can refuse if the console has been opened or modified, so go to them before anyone else works on it.
Hall effect or TMR? If you'd rather have drift-resistant sticks, I fit magnetic ones. Hall effect and TMR sticks both sense the stick's position with magnets instead of the carbon tracks that wear and cause drift. TMR is the newer version of the same idea and uses less power. Both are aftermarket sticks, not Nintendo parts.
Hall effect sticks are £45 and TMR sticks are £55, for both sticks.

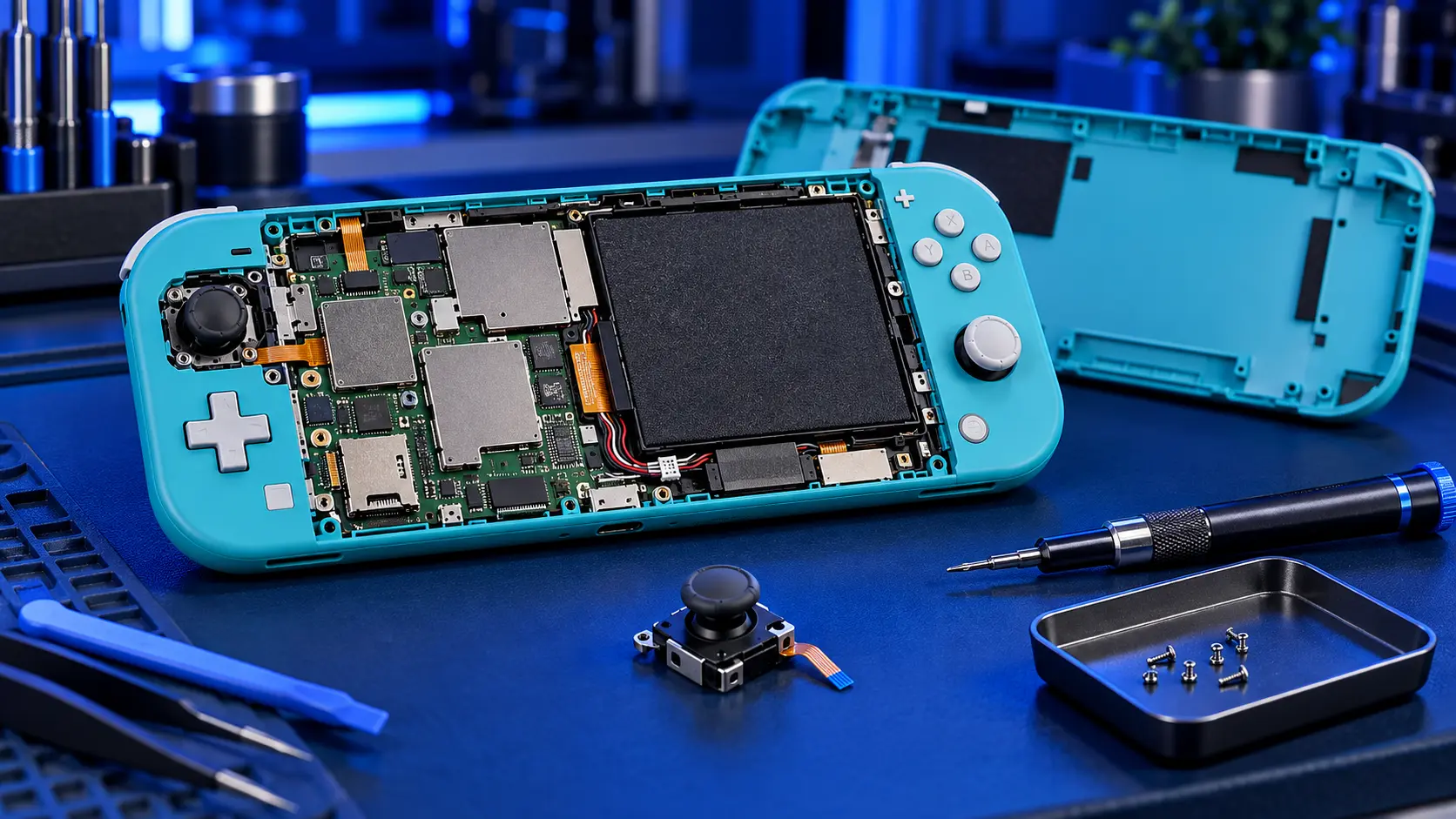

Both sticks, every time. I replace both sticks on every Lite. A new stick beside a worn one feels uneven, and the other stick has had the same wear. I open the Lite, fit the new sticks, reassemble, calibrate and test it before it goes back.
The Lite is a sealed handheld, so opening it means working around the screen and battery. Take out your game card and microSD card before posting, and back up your saves where you can as a sensible precaution, even though your own console comes back to you. For other Lite faults, see the Nintendo Switch repair hub.
