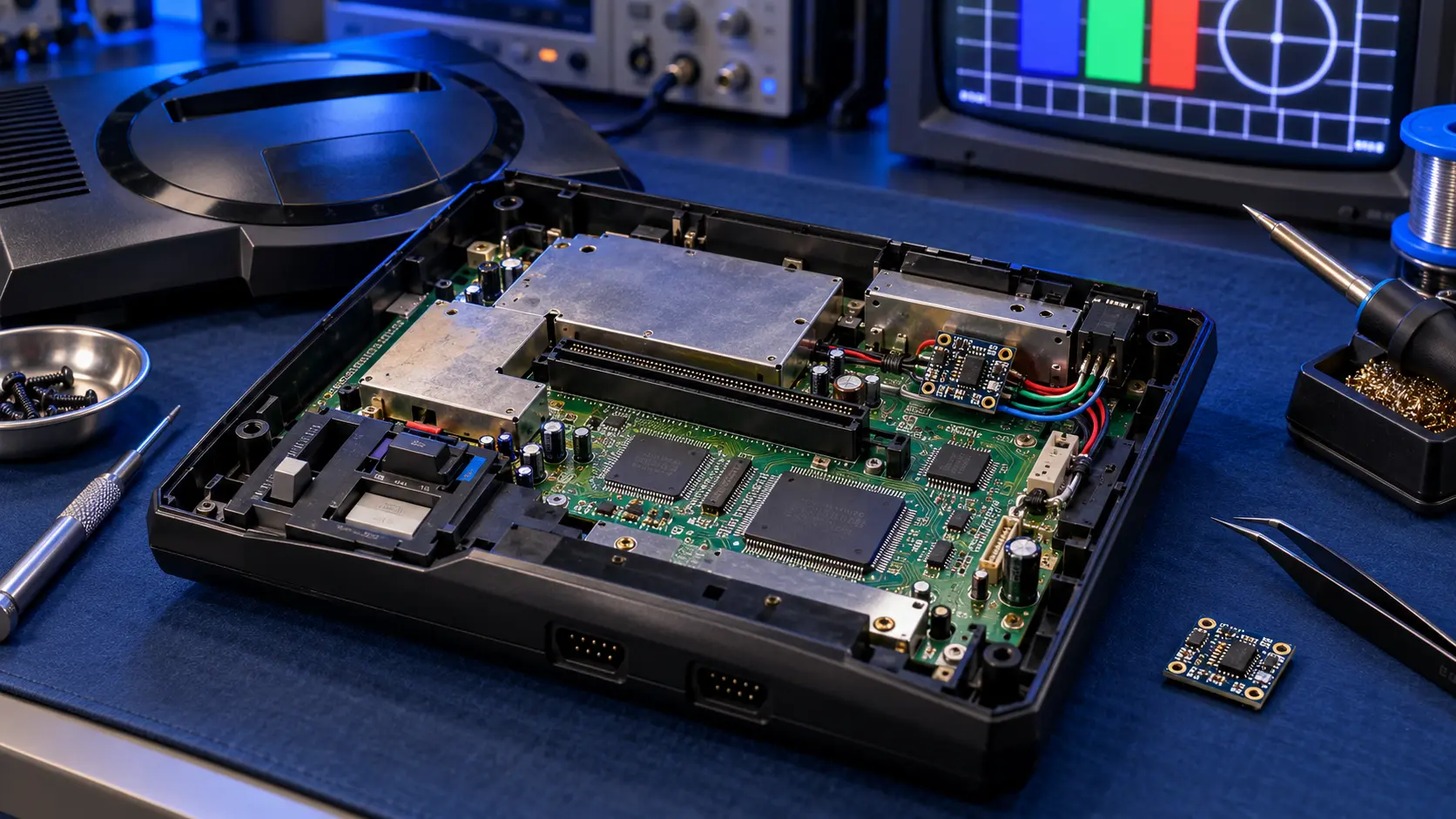

Mega Drive RGB Mod (Triple Bypass)

£85

No fix, no fee · 12-month warranty · Insured, tracked returns

Reasons to book

  • Faint vertical lines (jailbars) across your picture
  • A picture that looks soft or muddy over RGB SCART
  • Colours that look smeared or uneven
  • You want the sharpest picture your Mega Drive can give for playing or capturing
  • You want a cleaner signal to feed an upscaler or a SCART-equipped TV

RGB is a way of sending the picture that carries the red, green and blue colour signals separately, so it's much sharper than composite (the single yellow plug). In the UK, RGB traditionally goes through a SCART socket, the wide 21-pin connector found on older TVs. The catch is that many new TVs no longer have one, so check your setup before you book.

The Mega Drive's own video amplifier section can leave the picture looking less clean than it could. One well-known symptom is "jailbars": faint vertical lines running down the screen, most visible on plain backgrounds. A Triple Bypass board replaces that video amplifier section. The result is a cleaner RGB picture with reduced jailbars.

When your console arrives, I check it powers up and outputs a picture as it is. Then I fit the Triple Bypass board, which is included in the price, and test the picture over RGB before it goes back to you.

A few honest limits. The mod reduces jailbars rather than removing every trace, and the final picture still depends on your cable and TV. It improves the RGB signal the console puts out, so you'll still need a way to get RGB into your screen, whether that's a SCART socket or a converter or upscaler. If your console has another fault, such as quiet or crackly sound, that needs a separate fix like the Mega Drive recap. And if you own a rare or boxed console, modding it can reduce its value to collectors.

If you're not sure which route suits your TV, RGB SCART vs an HDMI mod walks through the options.

Mega Drive RGB Mod (Triple Bypass)

Frequently asked questions

What are jailbars?
Faint vertical lines that run down the picture, easiest to spot on flat colours like a blue sky. The Triple Bypass board is fitted to reduce them.
Will this give my Mega Drive HDMI output?
No. It gives a cleaner RGB signal. To use it with an HDMI-only TV, you'd need a separate converter or upscaler.
Does the mod change how games play?
No. It only affects the video signal. Games run exactly as before.
